China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

起源の場所:

中国

ブランド名:

WINNER

証明:

ISO9100

送信

引用を要求しなさい

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

製品詳細

製品名:

スプリングテストプローブ

バレル:

PB、金メッキ

ボトムプランジャー:

BeCu/SK4、金メッキ

トッププランジャー:

SK4(Be Cu)/金メッキ

春:

SWPB(SUS)/金メッキ

可用性:

利用可能なカスタムサイズ

コーティング:

金メッキ

電流定格:

接触抵抗:

最大100ミリオーム

帯域幅:

0.53dB @ 19.6GHz

インダクタンス:

1.27nH

キャプタンス:

1.58pF

フルストローク:

1.6mm

定数ストローク:

1.0mm

ばね力:

41グラム@1.0mm

機械的寿命の超過:

200k

支払及び船積みの言葉

最小注文数量

3000pcs

価格

999

パッケージの詳細

ニュートリアルパッキングまたはOEMロゴ付き

受渡し時間

5～8営業日

支払条件

L/C、ウェスタンユニオン、T/T

供給の能力

1 か月あたりの 100000 ロール

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

お問い合わせ

China Supplier Double ended Pogo Pin Spring Loaded Probe UF-FT064BD816-001

お問い合わせ

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for BGA Testing

お問い合わせ

双頭高周波IC試験探査機 YF DE1-051DF57-01C0

お問い合わせ

送信

今接触

製品の説明

YOUFU UF-FTO75BF070-001 Dual Head Spring Loaded Pogo Pins

High precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities for semiconductors and SiC wafers.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

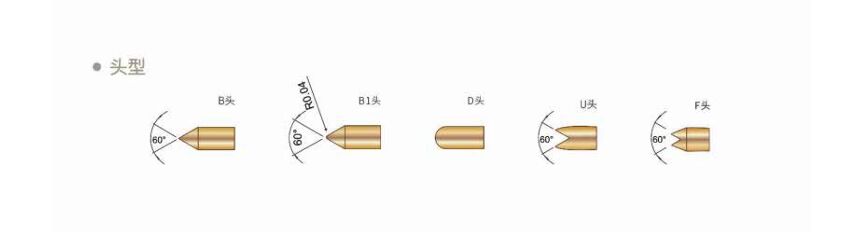

Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

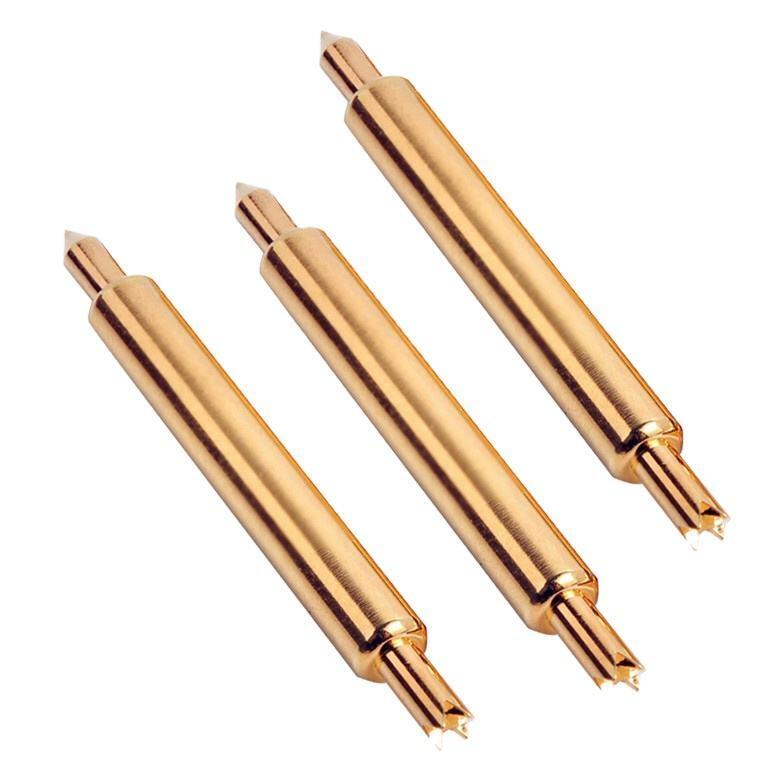

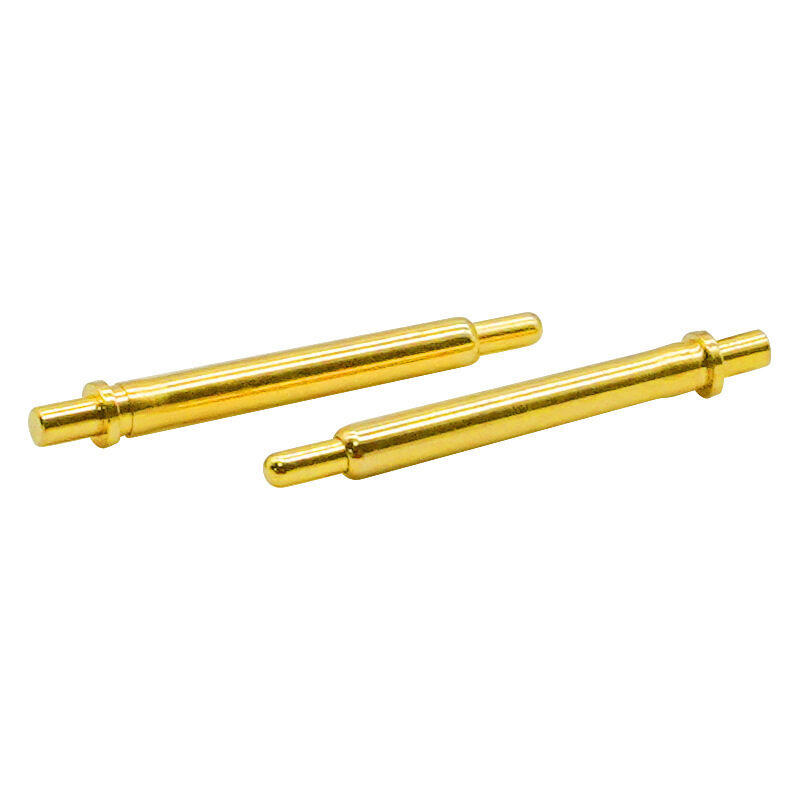

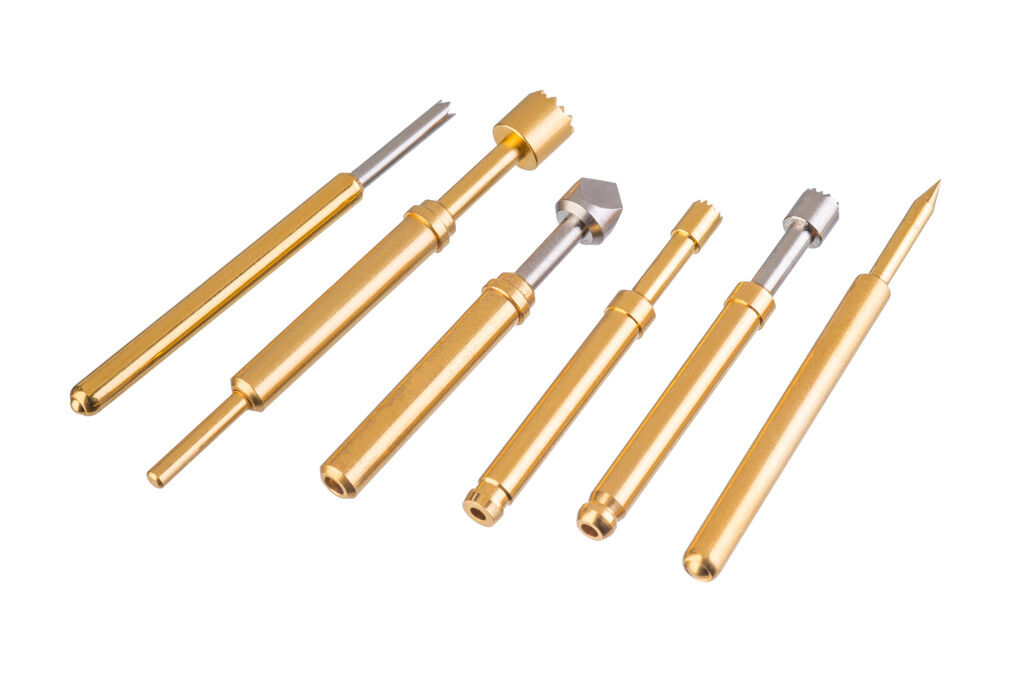

Product Images

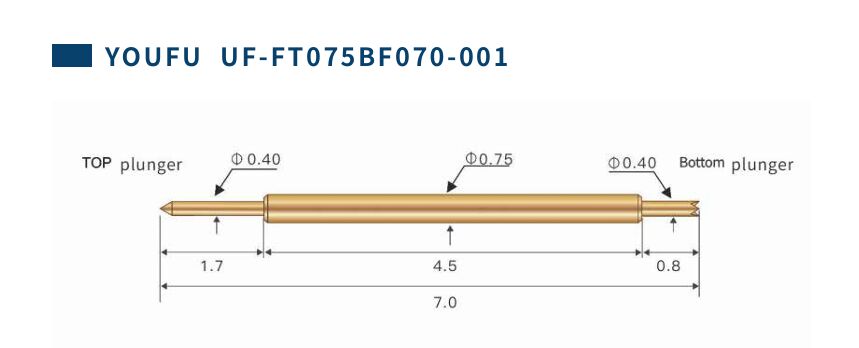

Detailed Component Illustration

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
