Name: Spring Contact Probe Pogo Pin with 3A Current Rating 50mΩ Resistance and 2.5mm Stroke for PCB Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

ホーム > 製品 > Spring Test Probes >

Spring Contact Probe Pogo Pin with 3A Current Rating 50mΩ Resistance and 2.5mm Stroke for PCB Testing

3A Current Rating Spring Contact Probe

50mΩ Resistance Pogo Pin

2.5mm Stroke PCB Test Probe

起源の場所:

中国

ブランド名:

WINNER

証明:

ISO9100

送信

引用を要求しなさい

製品詳細

製品名:

標準サイズのテストプローブ

プランジャー:

Becu

バレル:

真鍮

春:

ステンレス鋼

可用性:

利用可能なカスタムサイズ

コーティング:

金メッキ

MOQ:

100個

ハイライト:

3A Current Rating Spring Contact Probe

50mΩ Resistance Pogo Pin

2.5mm Stroke PCB Test Probe

支払及び船積みの言葉

最小注文数量

1PC

価格

999

パッケージの詳細

ニュートリアルパッキングまたはOEMロゴ付き

受渡し時間

5～8営業日

支払条件

L/C、ウェスタンユニオン、T/T

供給の能力

1 か月あたりの 100000 ロール

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

お問い合わせ

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

お問い合わせ

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

お問い合わせ

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

お問い合わせ

送信

今接触

製品の説明

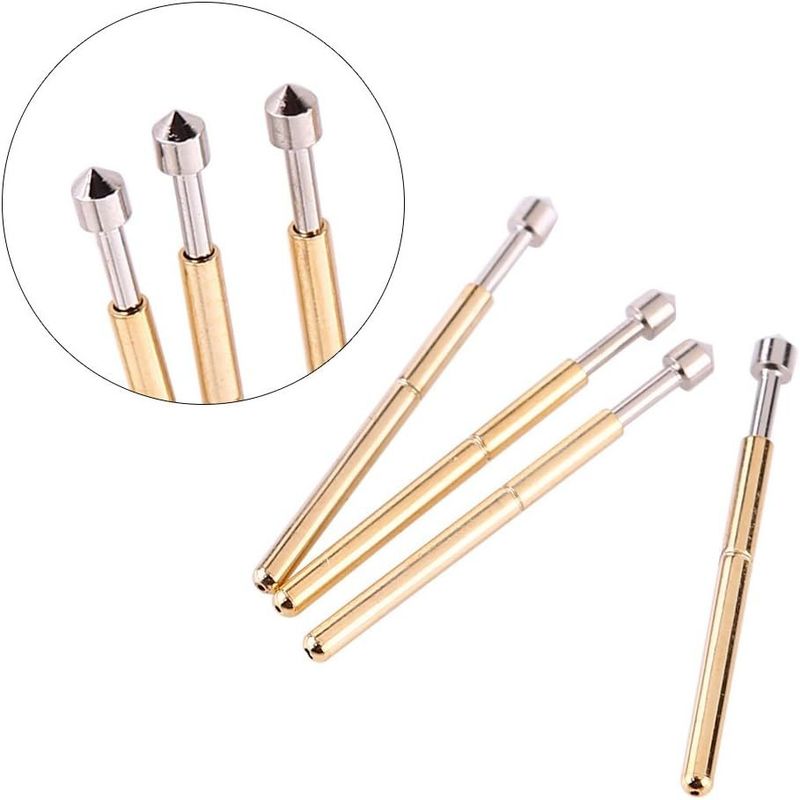

Spring Contact Probe, Pogo Pin Test Tools Cone Shape Head (100 Pieces)

Spring test probes are essential components for PCB testing, designed to access components on printed circuit assemblies. This set includes 100 durable spring test probes with cone-shaped heads, ideal for testing through-hole components, PCB gold fingers (edge connectors), and pads. Perfect for replacing broken or worn-out test probes.

Key Features

Cone-shaped head for through-hole component testing
Set of 100 probes for extended use
Ideal for testing PCB gold fingers and pads
Durable replacement for damaged probes

Technical Specifications

Feature	Specification
Head Shape	Cone
Current Rating	3A
Resistance	50mΩ
Stroke	2.5mm
Probe Tube Diameter	1.02mm
Probe Rod Diameter	1mm
Probe Length	16mm
Boring Size	1.4mm
Min. Test Interval	1.91mm

Package Contents

100 x Probes

Test Probe Selection Guide

Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.

Detailed illustration of test probe components and construction

Various test probe tip types

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization to meet your specific requirements:

Custom diameters to match your specifications
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
