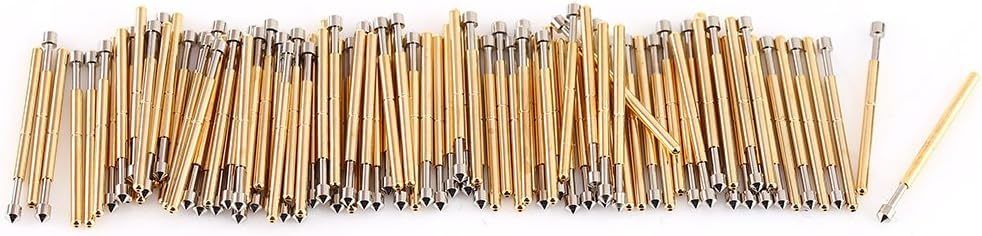

Name: 100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

ホーム > 製品 > Spring Test Probes >

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

P75-E2 Cone Head Spring Test Probe

16mm Length PCB Testing Pin

1.4mm Boring Size Pogo Pin

起源の場所:

中国

ブランド名:

WINNER

証明:

ISO9100

送信

引用を要求しなさい

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

製品詳細

製品名:

標準サイズのテストプローブ

プランジャー:

Becu

バレル:

真鍮

春:

ステンレス鋼

可用性:

利用可能なカスタムサイズ

コーティング:

金メッキ

MOQ:

100個

ハイライト:

P75-E2 Cone Head Spring Test Probe

16mm Length PCB Testing Pin

1.4mm Boring Size Pogo Pin

支払及び船積みの言葉

最小注文数量

1PC

価格

999

パッケージの詳細

ニュートリアルパッキングまたはOEMロゴ付き

受渡し時間

5～8営業日

支払条件

L/C、ウェスタンユニオン、T/T

供給の能力

1 か月あたりの 100000 ロール

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

お問い合わせ

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

お問い合わせ

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

お問い合わせ

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

お問い合わせ

送信

今接触

製品の説明

Spring Test Probe-100 Pieces P75-E2 Cone Head Dia 1.02mm Spring Test Probe PCB Testing Pin

Essential components for PCB testing, these spring test probes provide reliable access to components on printed circuit assemblies. The set includes 100 durable probes with cone-shaped heads designed for testing through-hole components.

Key Features

100-piece set for extended use

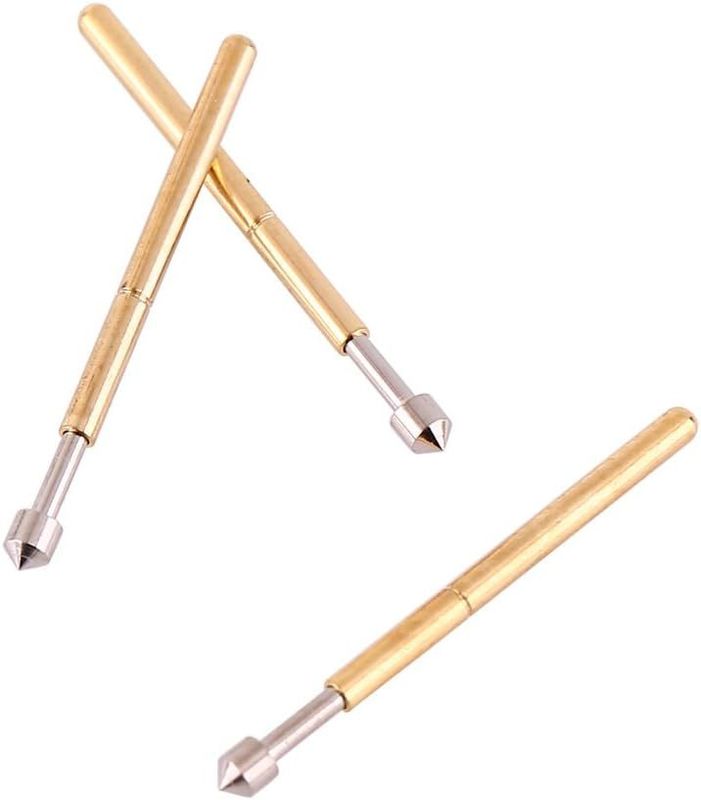

Cone-shaped head for testing through-hole components
Ideal for testing PCB gold fingers (edge connectors) and pads
Perfect replacement for broken or worn test probes

Technical Specifications

Head Shape	Cone
Current Rating	3A
Resistance	50mΩ
Stroke	2.5mm
Probe Tube Diameter	1.02mm
Probe Rod Diameter	0.74mm
Probe Length	16mm
Boring Size	1.4mm
Min. Test Interval	1.91mm

Test Probe Selection Guide

Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.

Detailed illustration of test probe components and construction

Various test probe tip types

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization to meet your specific requirements:

Custom diameters to match your specifications
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
