Name: Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

ホーム > 製品 > Spring Test Probes >

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

6.4mm Full Stroke Spring Test Probe

4.3mm Rated Stroke Pogo Pin

1.0N Spring Force ICT Test Probe

起源の場所:

中国

ブランド名:

WINNER

証明:

ISO9100

送信

引用を要求しなさい

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

製品詳細

製品名:

標準サイズのテストプローブ

プランジャー:

BeCu/SK4、金メッキ

バレル:

ブロンズ、金メッキ

春:

SWP、Ni 上に金メッキ

可用性:

利用可能なカスタムサイズ

コーティング:

金メッキ

MOQ:

3000pcs

容器:

めっきされる真鍮の金

現在の評価:

3Amps

接触抵抗:

最大5000万Ω

フルストローク:

6.4mm

定数ストローク:

4.3mm

スプリングフォース:

1.0n

CEM1:

1.0mm(.039)

FR4:

1.0mm(.039)

標準:

-40℃-+80℃

スペシャルデザイン「C」:

-100℃～+200℃

ハイライト:

6.4mm Full Stroke Spring Test Probe

4.3mm Rated Stroke Pogo Pin

1.0N Spring Force ICT Test Probe

支払及び船積みの言葉

最小注文数量

3000pcs

価格

999

パッケージの詳細

ニュートリアルパッキングまたはOEMロゴ付き

受渡し時間

5～8営業日

支払条件

L/C、ウェスタンユニオン、T/T

供給の能力

1 か月あたりの 100000 ロール

Customized Brass Barrel Spring Test Probe with 6.4mm Full Stroke 4.3mm Rated Stroke and 1.0N Spring Force for ICT Applications

お問い合わせ

2.36mm Spring Test Probe with 9 Claws and 100 Pcs Brass Barrel Spring Loaded Test Pin for Industrial Testing

お問い合わせ

Custom Sizes Brass Barrel Stainless Steel Spring Test Probe for Precision PCB Testing

お問い合わせ

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

お問い合わせ

送信

今接触

製品の説明

Customized Brass Barrel Stainless Steel Spring Test Probe YF050 for In-Circuit-Test (ICT)

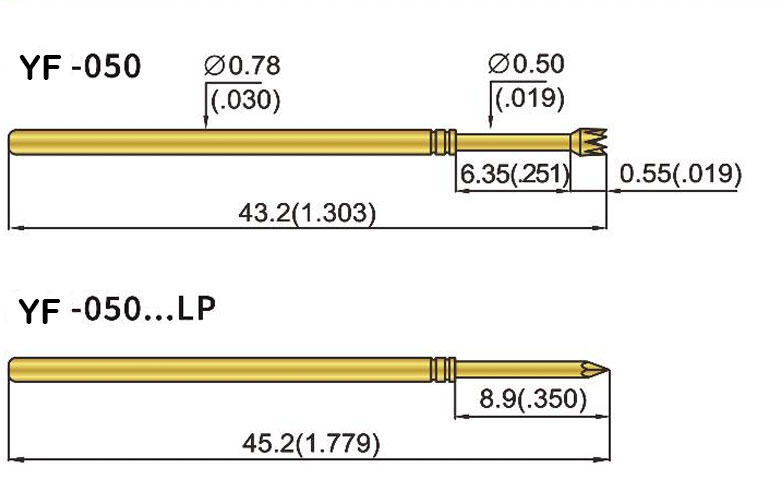

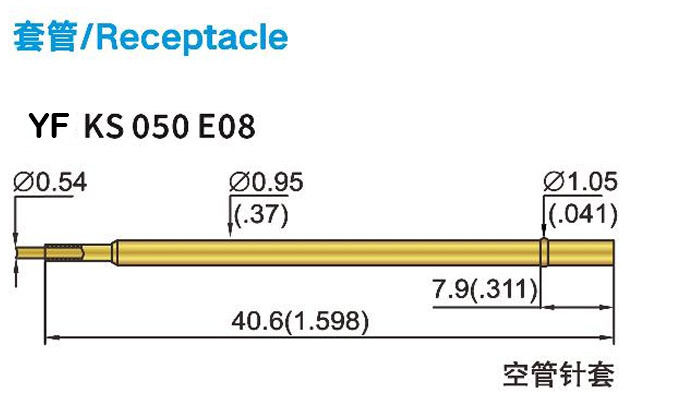

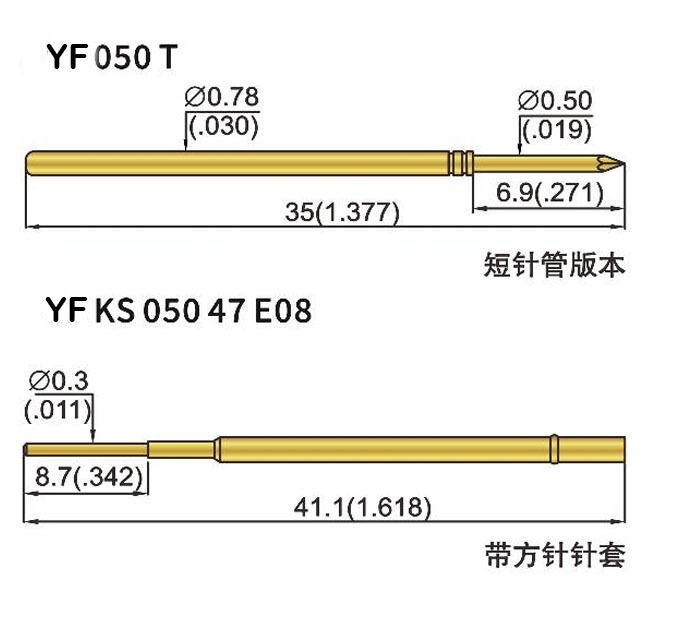

Production Specifications

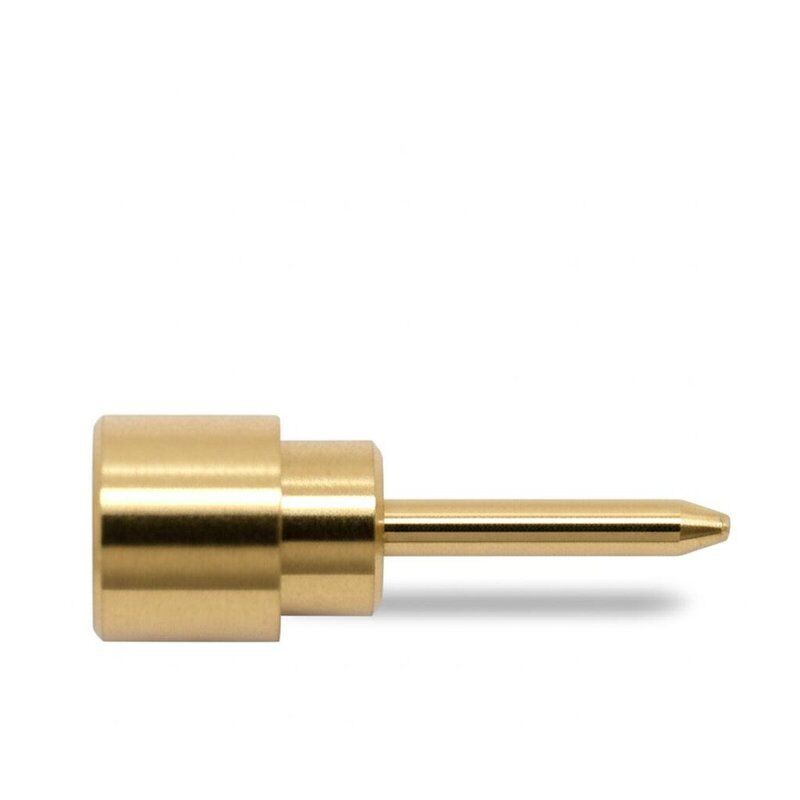

Product Images

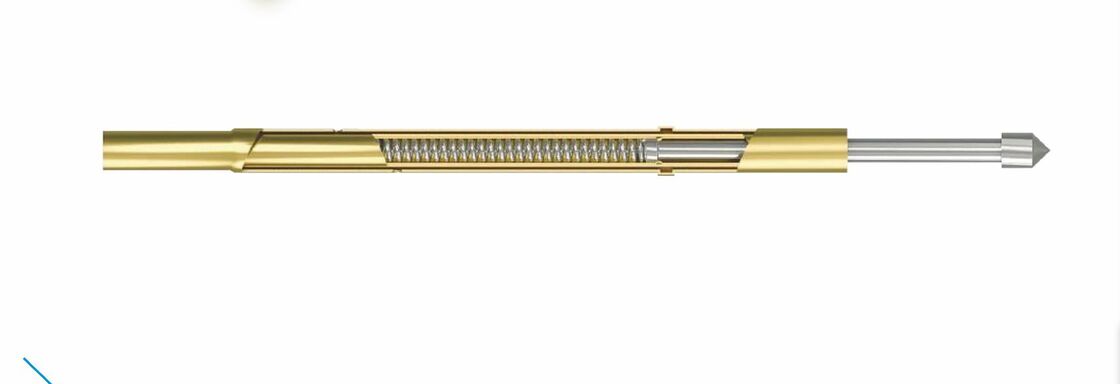

Detailed Component Illustration

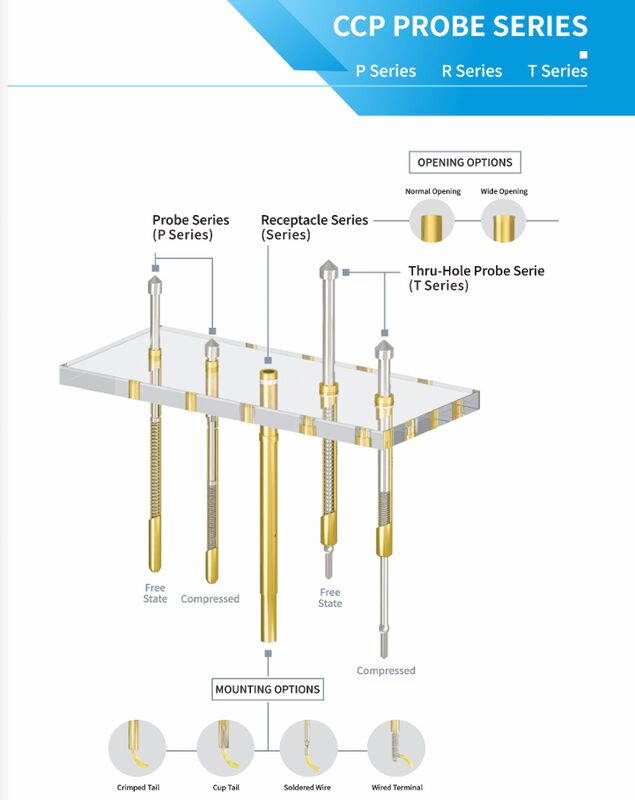

Comparison of different test probe tip types and configurations

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
