Name: Gold Plated High Durability Spring Test Probe
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

ホーム > 製品 > Spring Test Probes >

Gold Plated High Durability Spring Test Probe

gold plated spring test probe

high durability test probe

spring probe with warranty

起源の場所:

中国

ブランド名:

WINNER

証明:

ISO9100

送信

引用を要求しなさい

Gold Plated High Durability Spring Test Probe

製品詳細

製品名:

スプリングテストプローブ

バレル:

PB、金メッキ

ボトムプランジャー:

BeCu/SK4、金メッキ

トッププランジャー:

SK4(Be Cu)/金メッキ

春:

SWPB(SUS)/金メッキ

可用性:

利用可能なカスタムサイズ

コーティング:

金メッキ

電流定格:

接触抵抗:

最大100ミリオーム

帯域幅:

-0.20dB @ 19.6GHz

インダクタンス:

1.17nH

キャプタンス:

1.45pF

フルストローク:

0.6MM

定数ストローク:

0.5MM

スプリングフォース:

25グラム@0.5mm

機械的寿命の超過:

200k

ハイライト:

gold plated spring test probe

high durability test probe

spring probe with warranty

支払及び船積みの言葉

最小注文数量

3000pcs

価格

999

パッケージの詳細

ニュートリアルパッキングまたはOEMロゴ付き

受渡し時間

5～8営業日

支払条件

L/C、ウェスタンユニオン、T/T

供給の能力

1 か月あたりの 100000 ロール

Gold Plated High Durability Spring Test Probe

お問い合わせ

Double plunger, push fit test probe for fine pitch components.

お問い合わせ

Gold Plated High Durability Spring Test Probe | Custom Sizes Pogo Pin for Electronic Testing

お問い合わせ

Gold Plated Spring Test Probe with 1A Current Rating and Custom Sizes for BGA Testing

お問い合わせ

送信

今接触

製品の説明

Gold-Plated Spring Test Probe | High Durability Pogo Pin for Electronic Contact Testing

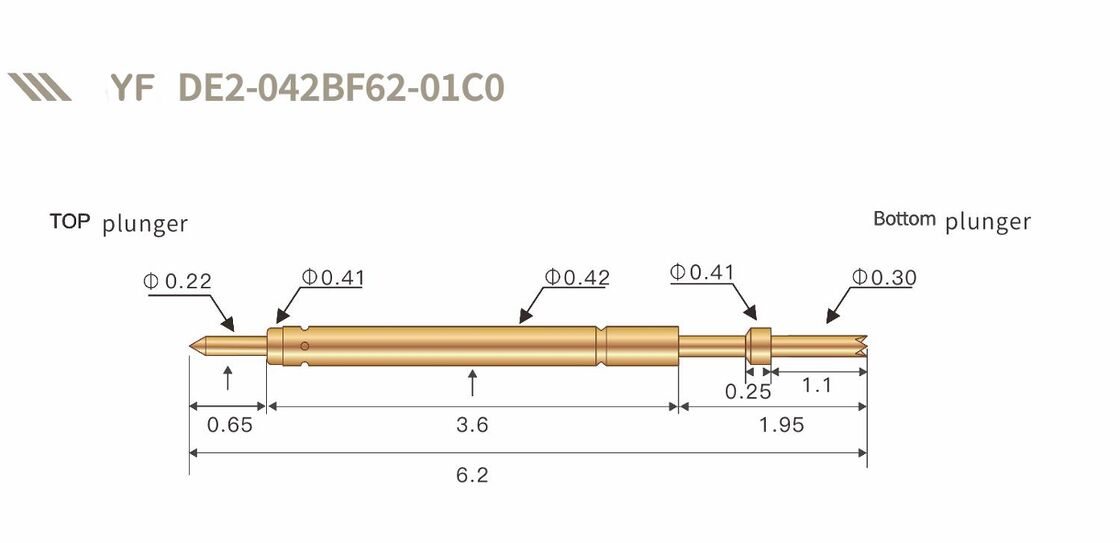

Electric Cable Switching Probe YF DE2-042BF62-01C0

High Efficiency BGA Testing Probes - Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

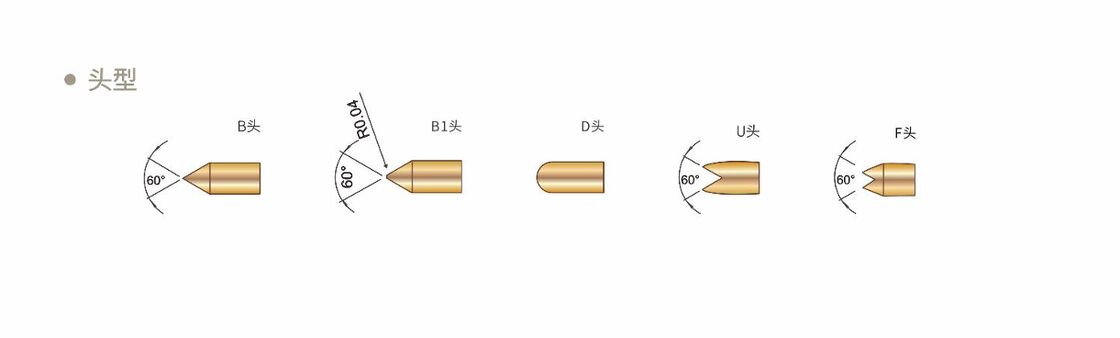

Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Production Specifications

Product Images

Detailed Component Illustration

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
