Name: Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

ホーム > 製品 > Spring Test Probes >

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

Gold Plated Spring Test Probe

2A Current Rating PCB Test Probe

Custom Sizes Pogo Pin

起源の場所:

中国

ブランド名:

WINNER

証明:

ISO9100

送信

引用を要求しなさい

製品詳細

製品名:

スプリングテストプローブ

バレル:

PB、金メッキ

ボトムプランジャー:

BeCu/SK4、金メッキ

トッププランジャー:

SK4(Be Cu)/金メッキ

春:

SWPB(SUS)/金メッキ

可用性:

利用可能なカスタムサイズ

コーティング:

金メッキ

電流定格:

接触抵抗:

最大100ミリオーム

帯域幅:

-0.16dB @ 19.6GHz

インダクタンス:

1.35nH

キャプタンス:

1.73pF

フルストローク:

1.2mm

定数ストローク:

0.8mm

スプリングフォース:

30グラム@0.8mm

機械的寿命の超過:

200k

ハイライト:

Gold Plated Spring Test Probe

2A Current Rating PCB Test Probe

Custom Sizes Pogo Pin

支払及び船積みの言葉

最小注文数量

3000pcs

価格

999

パッケージの詳細

ニュートリアルパッキングまたはOEMロゴ付き

受渡し時間

5～8営業日

支払条件

L/C、ウェスタンユニオン、T/T

供給の能力

1 か月あたりの 100000 ロール

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

お問い合わせ

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

お問い合わせ

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

お問い合わせ

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

お問い合わせ

送信

今接触

製品の説明

Wholesale High Quality Connector Contact Pin for PCB

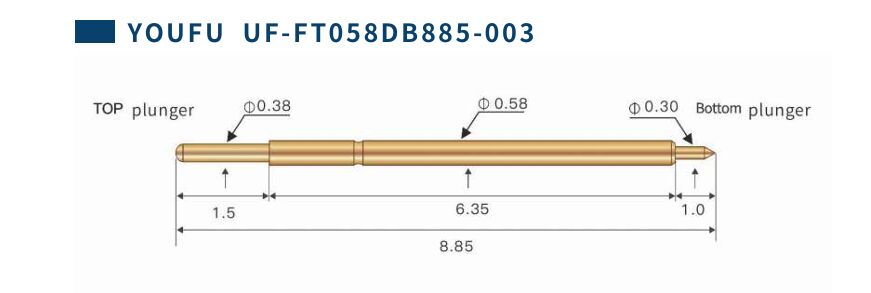

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO58DB885-003

Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Product Images

Detailed Component Illustration

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment

Contact us to request samples or a quotation for your specific application requirements.
