Customized High Strength Light Weight Gold-Coated Molybdenum Metal Wires Good Conducting Properties

Customized High Strength Light Weight Gold-Coated Molybdenum Metal Wires Good Conducting Properties

gold plated molybdenum wire

high strength molybdenum wire

light weight gold-coated wire

起源の場所:

中国

ブランド名:

WINNER

証明:

ISO9100

モデル番号:

MW001

送信
引用を要求しなさい
製品詳細
応用:
半導体パッケージ、マイクロエレクトロニクス、医療機器
パッケージ:
スプール
耐食性:
高い
材料:
線径:
0.001インチ
結合強度:
高い
長さメートル:
500/1000
製品タイプ:
ボンディングワイヤ
コーティングの厚さ:
0.001mm
コーティング:
純度:
99.999%
結合方法:
超音波
温度範囲:
-40°C〜200°C
表面仕上げ:
明るい
導電率:
98%
パッケージサイズ:
100メートル
ハイライト:

gold plated molybdenum wire

,

high strength molybdenum wire

,

light weight gold-coated wire

支払及び船積みの言葉
最小注文数量
1個
価格
999
パッケージの詳細
ロール、ニュートリアの梱包、またはOEMロゴ付き
受渡し時間
5~8営業日
支払条件
L/C、ウェスタンユニオン、T/T
供給の能力
1 か月あたりの 100000 ロール
製品の説明

Our Factory Direct High Quality Gold Plated Molybdenum Wire is specially designed for precision wire cutting applications and wire cutting spray systems. Manufactured with premium-grade molybdenum as the base material, this wire features a uniform and durable gold plating that ensures excellent conductivity, corrosion resistance, and enhanced durability.

Ideal for industrial wire cutting spray, this molybdenum wire offers superior tensile strength and outstanding thermal stability, enabling precise and clean cutting performance even under demanding conditions. The gold plating provides improved electrical contact and resistance to oxidation, extending the wire’s lifespan and reducing maintenance costs.

Available in various diameters and lengths, our gold plated molybdenum wire is factory-direct, guaranteeing competitive pricing without compromising on quality. Perfect for electronics manufacturing, semiconductor processing, and other high-tech industries requiring reliable and consistent wire cutting solutions.

Key Features:

  • Customization, 14μm/20μm /25μm/27μm metal wires in stock
  • Light weight, high strength
  • Good conducting
  • Anti-corrosion
  • More reliable and solid
  • Own production line

Trust our gold plated molybdenum wire to deliver top-tier performance and reliability for your wire cutting needs.


Technical Parameters


Items

Data

Chemical analysis (wt%)

Mo ≥ 99.9%, Au : 99.99%

Core wire diameter

25μm/27μm in stock, customized

Coating thickness

0.2 ~ 0.8μm

Max. using temperature

450℃

Anti-temperature shock

bear -196 ~ 250℃ fast cyclical impact

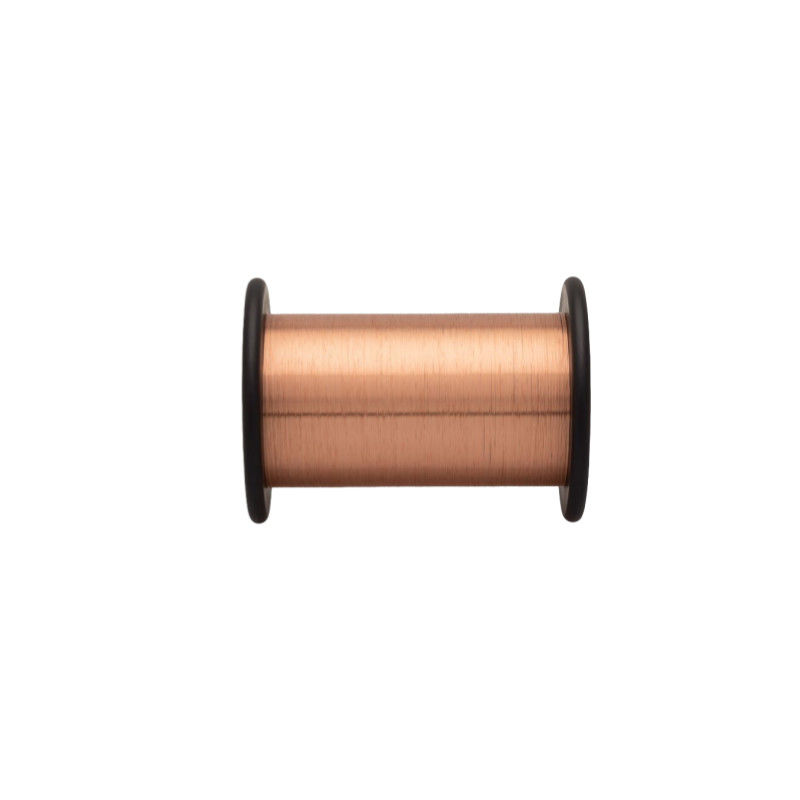

Customized High Strength Light Weight Gold-Coated Molybdenum Metal Wires Good Conducting Properties 0

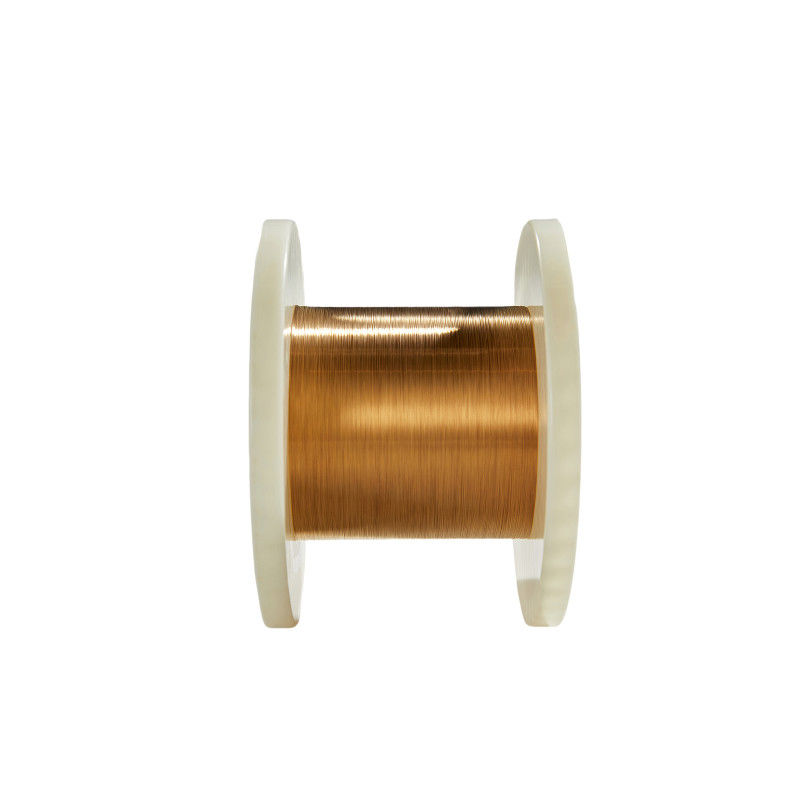

Customized High Strength Light Weight Gold-Coated Molybdenum Metal Wires Good Conducting Properties 1

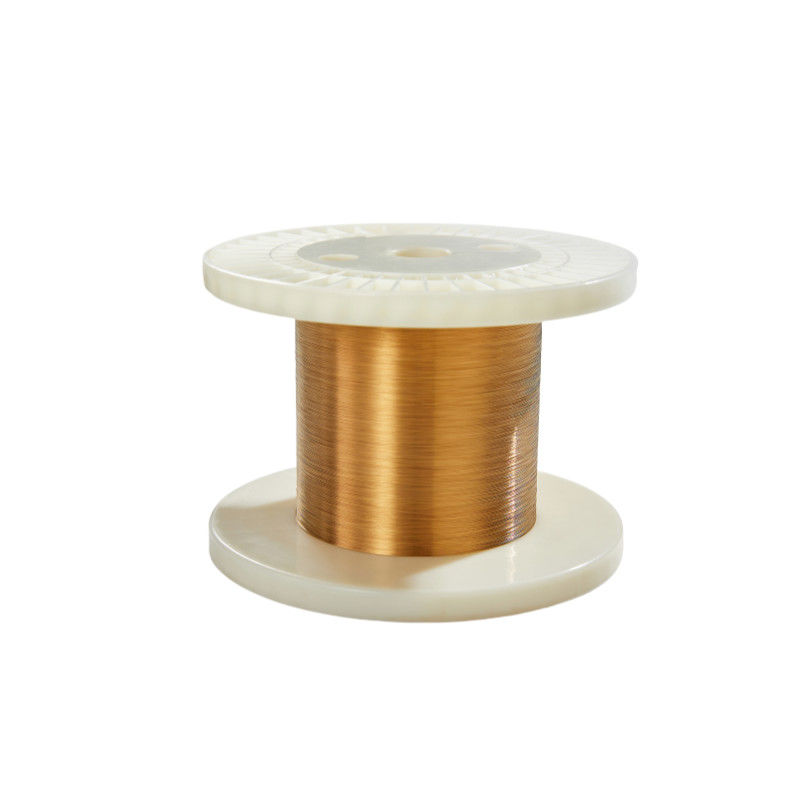

Customized High Strength Light Weight Gold-Coated Molybdenum Metal Wires Good Conducting Properties 2

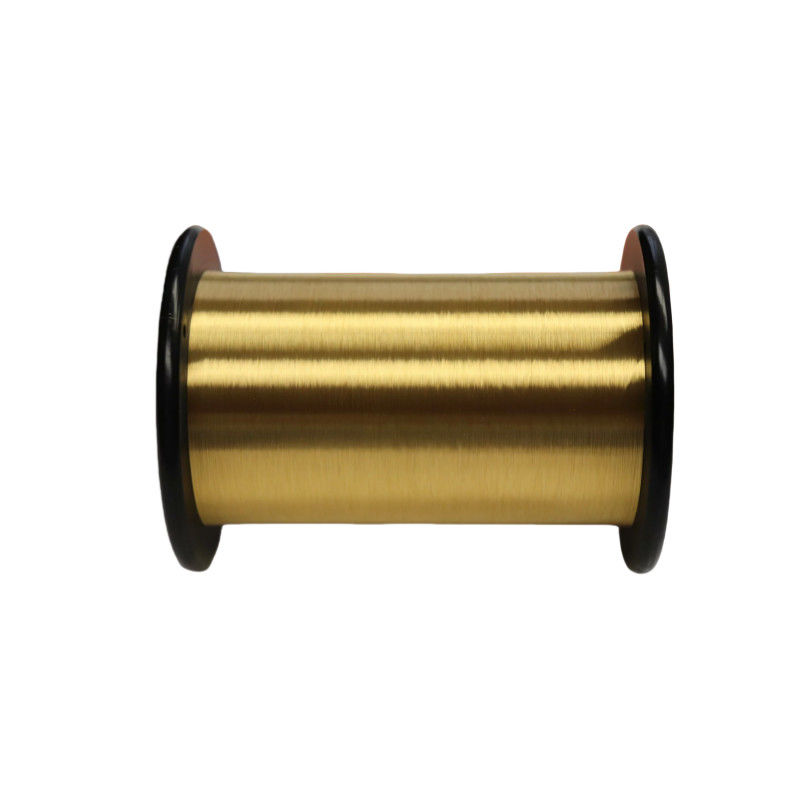

Customized High Strength Light Weight Gold-Coated Molybdenum Metal Wires Good Conducting Properties 3
